Factory Video:

Product Overall View:

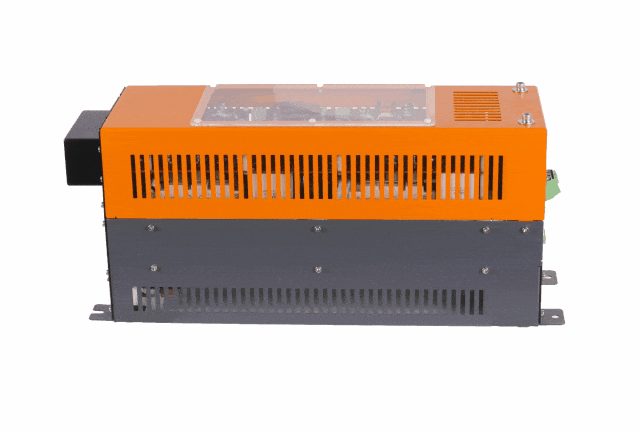

UV Ballasts in GIF-A(2)

Application:

Our Intelligent UV Inverter Ballasts are mainly used in areas like Printing Industry, Wooden Product Industry, Rubber Product Industry, Metal Product Industry, Electric Product Industry,  kinds of Painting Production Lines of UV quick drying Industries, etc, which is one ideal replacement of traditional UV Transformers( UV Transformer + Capacitors) (1KW-58KW, Ultra-high Power, Ultra-high Voltage).

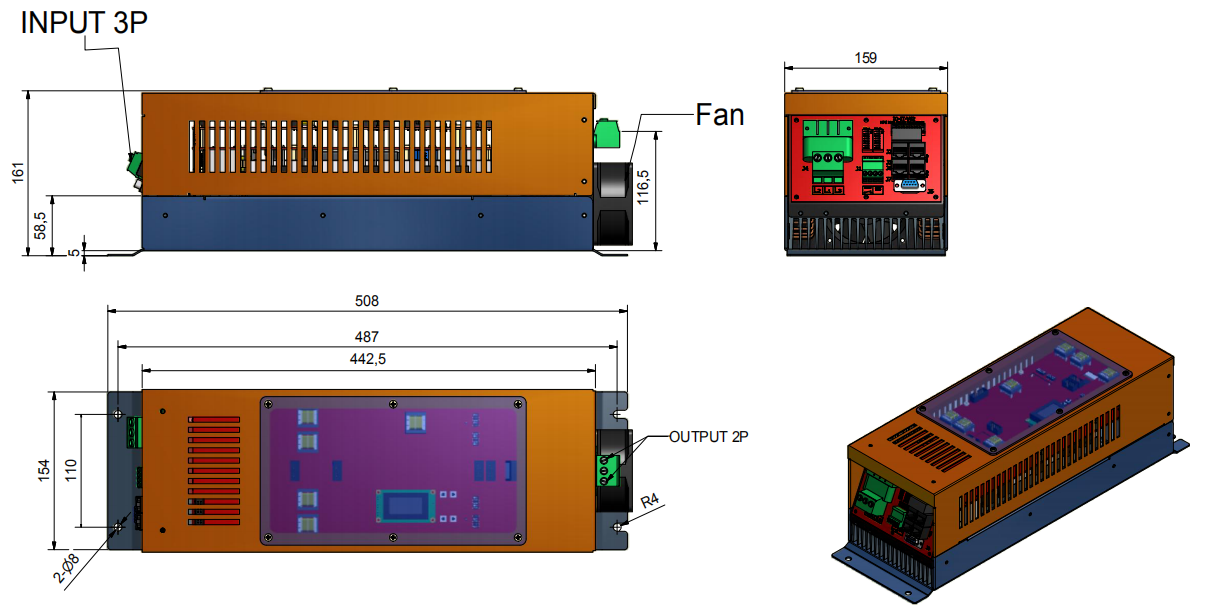

UV Bllasts Outline Drawing

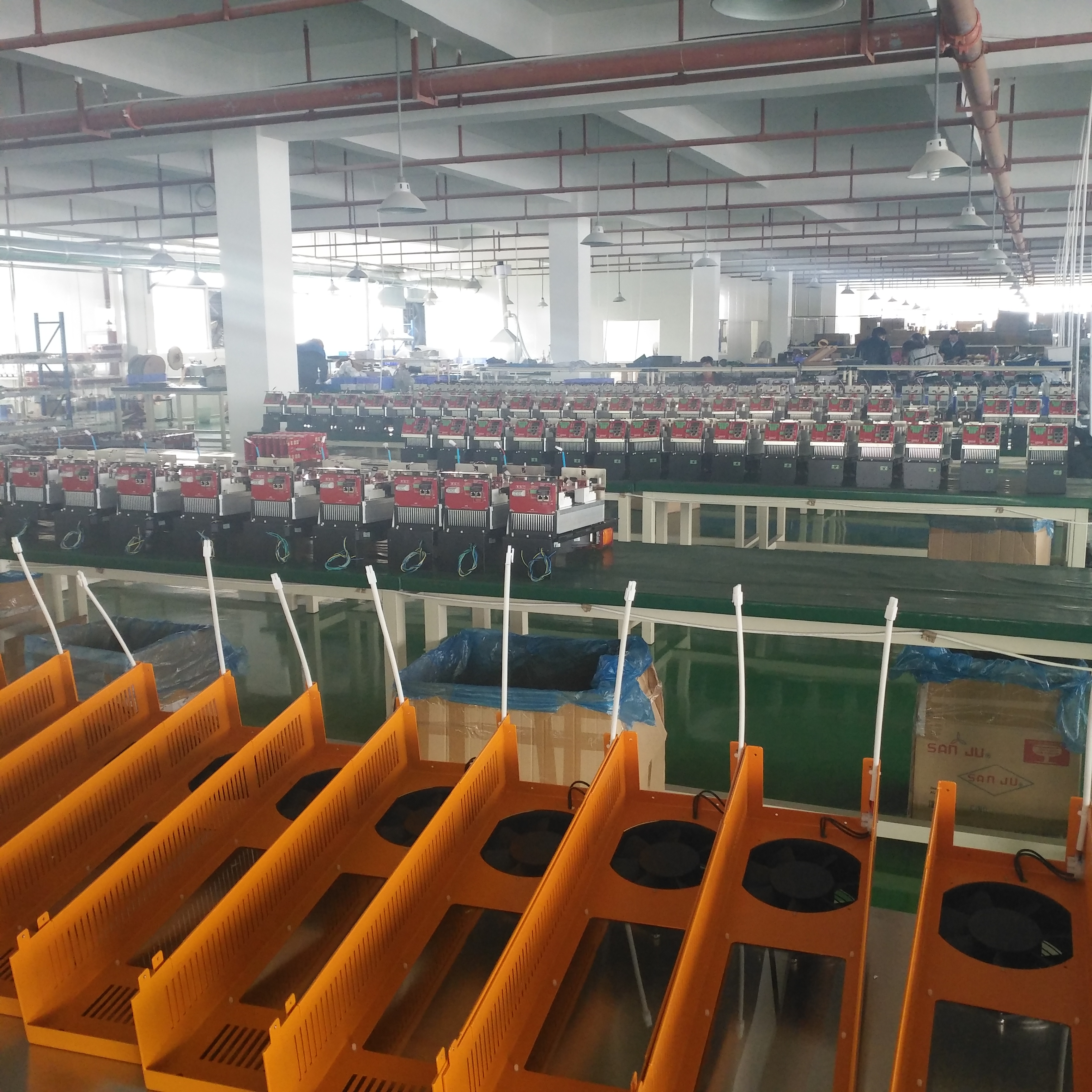

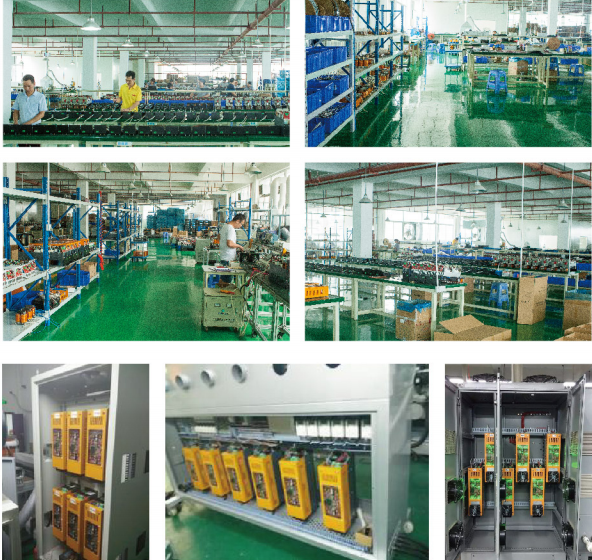

Our Workshop & Some Projects:

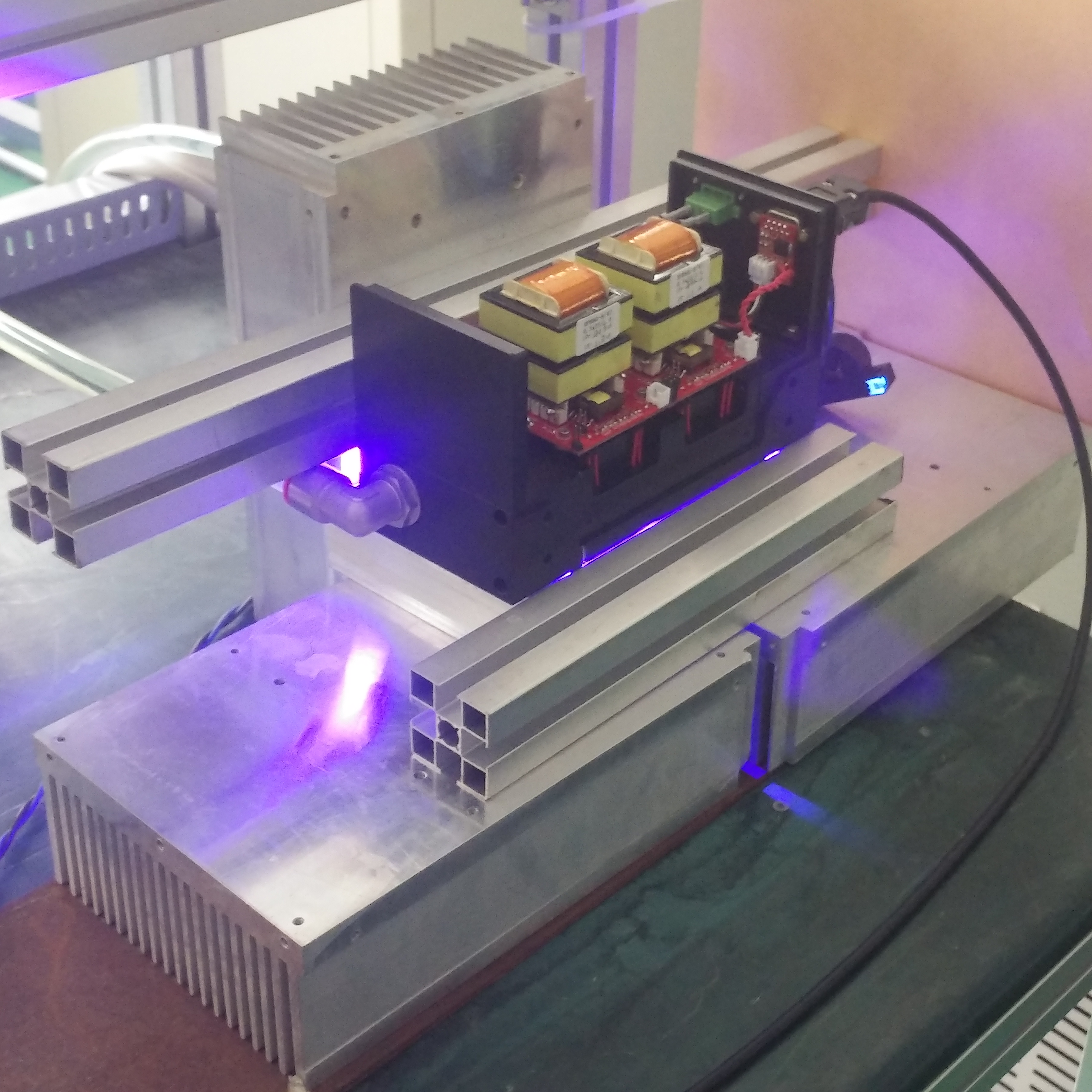

LED UV Power Ballasts

High Voltage UV Power Ballasts

Xenon Lamp Power Ballasts(A/C or D/C)

Xenon Lamp Power Ballasts

• Description About UV Lamp Powers/Ballasts:

UV lamp power ranges from a few watts for portable or consumer units from 1 KW up to 50 KW or more for large industrial curing and treatment systems.

Common Power Ratings

• Low Power (4W to 35W): Used in small household fixtures, mineral analysis, or portable disinfection tools.
• Medium Power (60W to 1000W): Found in mid-sized water purification units, specialized field gear, and professional display boxes.
• (Ours offered as below):
• High Power (1 kW to 50+kW): Utilized in heavy industrial UV curing, coating lines, and large-scale manufacturing reactors.
• High Voltage (375V to 5000V): Utilized in heavy industrial UV curing, coating lines, and large-scale manufacturing reactors.
• High Current (8A to 30A): Utilized in heavy industrial UV curing, coating lines, and large-scale manufacturing reactors.
• Stand-by mode
• Multi-protections(UV lamp protection, self-protection, over-load protection, over-heat protection… …)
• Stepless
• Adjustable

Power Supply and Ballasts

• Electronic Ballasts: Regulate the voltage and current delivered to the lamp, often featuring soft-start technology to extend bulb life.
• Input Voltages: Standard systems operate on 3-phase main from 220V to 3-phase 510V, as you need.

If you want, let me know:

• What type of UV lamp you are using (mercury, metal, germicidal, curing, aquarium, etc.)
• Whether you need a replacement bulb or an intelligent power supply/ballast
• You can also download our Product Catalog of our recent range of Intelligent UV lamp power ballasts in PDF format as a reference first.

I can help you find the right specifications. Or customized based on your detailed UV lamp specifications, like：

1. Detailed UV lamp input power？(Like 10KW…)
2. Detailed UV Lamp input voltage? (Like 1250V…)
3. Detailed UV lamp input current? (Like 8A, 9A…)
4. 3-phase main supply used on your production lines? (Like 3-phase main 415V, 3-phase main 380V…)
